Double Saddle Brackets, 14 Gauge Steel, Made in Canada
Double Saddle Brackets for Doubled-Up 2x Lumber
Built in Canada from 14 gauge galvanized steel and finished with a high temperature powder coat, these double saddle brackets are engineered to carry doubled joists, beams and rafters in pergolas, decks, fences and other outdoor wood structures.
Each bracket is precision laser cut, formed and welded in our Mississauga shop, then powder coated for long term protection against rust, scratching and UV fade. Pre-drilled fastener holes make installation fast and accurate.
Key Features
- 14 gauge galvanized steel, one of the heaviest gauges in the saddle bracket category
- Powder coated finish baked at high temperature for indoor and outdoor use
- Pre-drilled holes for fast install
- Built for doubled 2x lumber from 2x4 up to 2x12
- Designed and manufactured in Canada
- Sold in 4 packs
Available Sizes
- Double 2x4, 4 pack

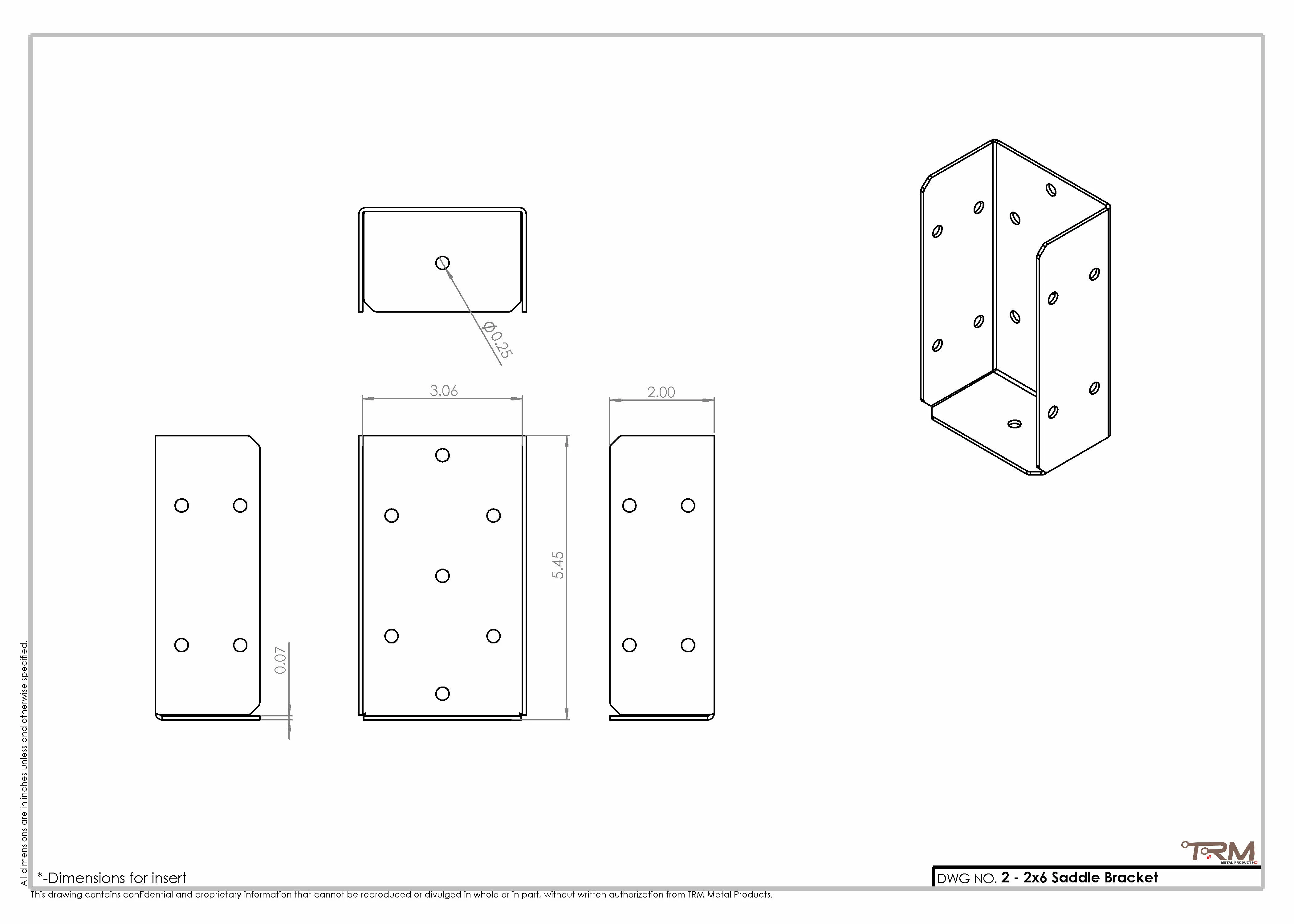

- Double 2x6, 4 pack
- Double 2x8, 4 pack

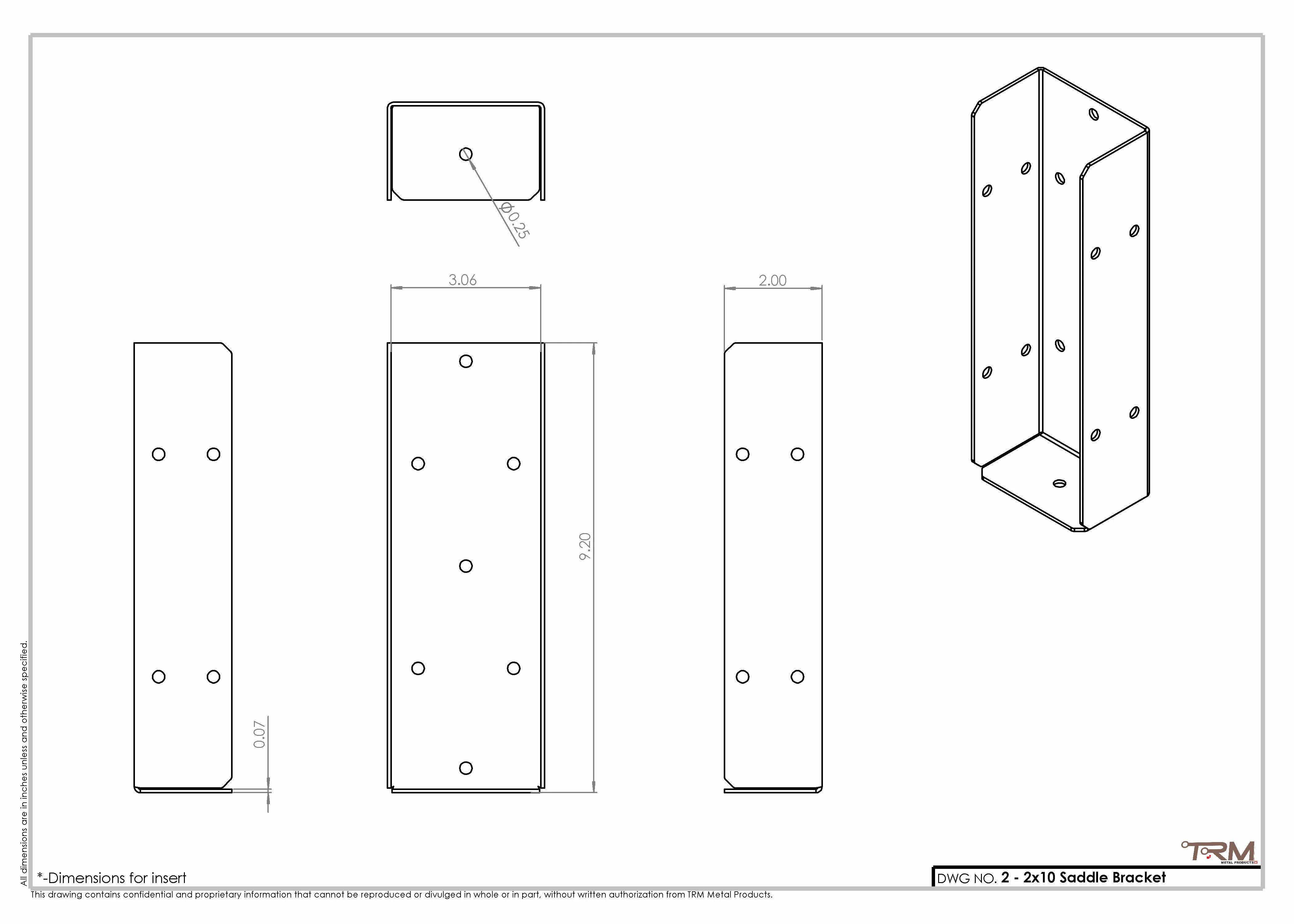

- Double 2x10, 4 pack

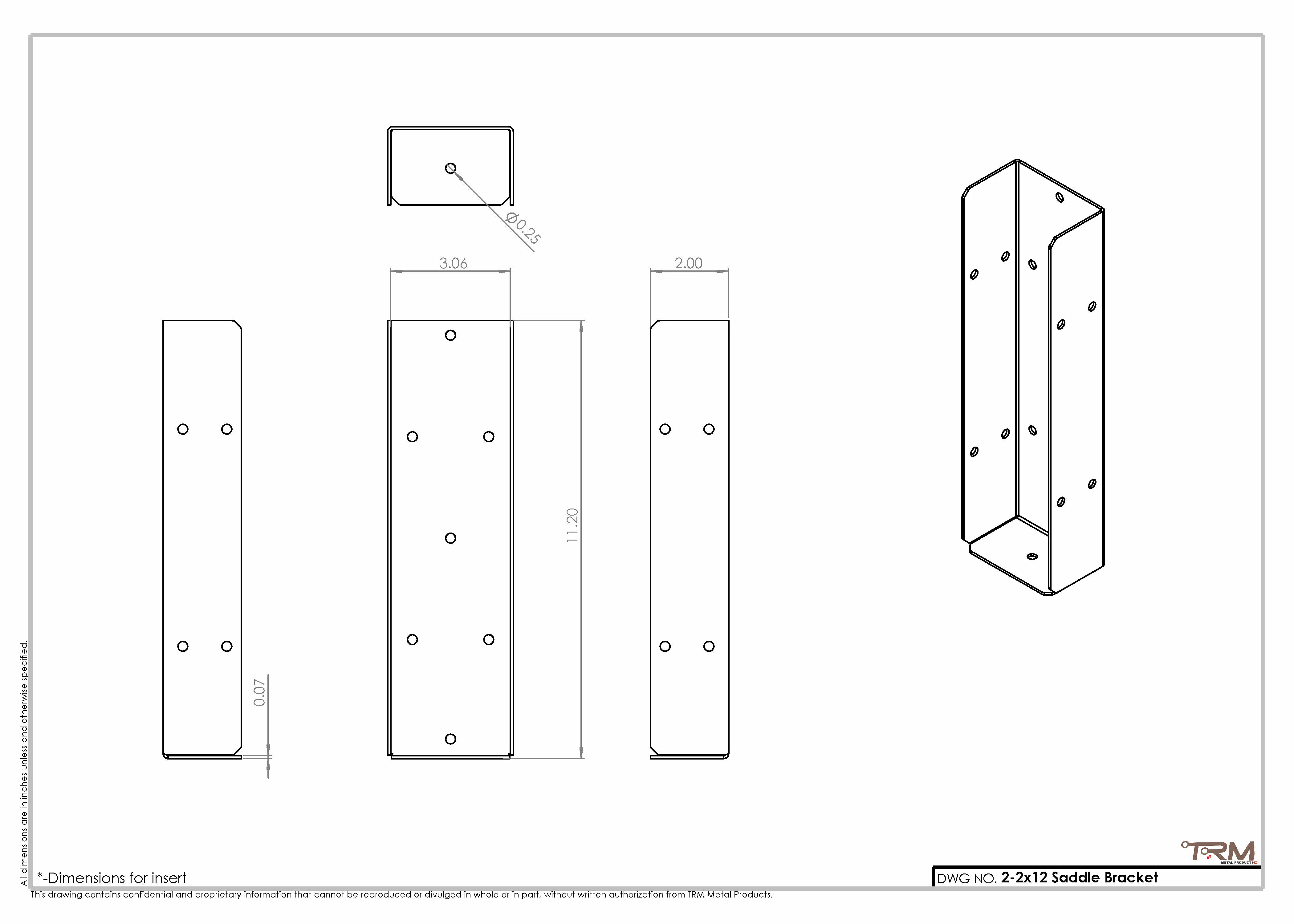

- Double 2x12, 4 pack
Recommended Fasteners
For full structural performance we recommend Simpson Strong-Tie SD connector screws. See the approved connector list at Simpson Strong-Tie Technical Notes.
Common Applications
Pergola post to beam connections, deck beam to post saddles, fence rail supports, gazebo framing, and any project where two pieces of dimensional lumber need a strong concealed connection.
